KR Sabers ECO TFU2 Chassis

KR Sabers ECO TFU2 Chassis

Regular price $18.70 USD
Regular price $18.70 USD Sale price $18.70 USD
Sale Sold out
Shipping calculated at checkout.
Soundboard
View full details

Collapsible content

Description

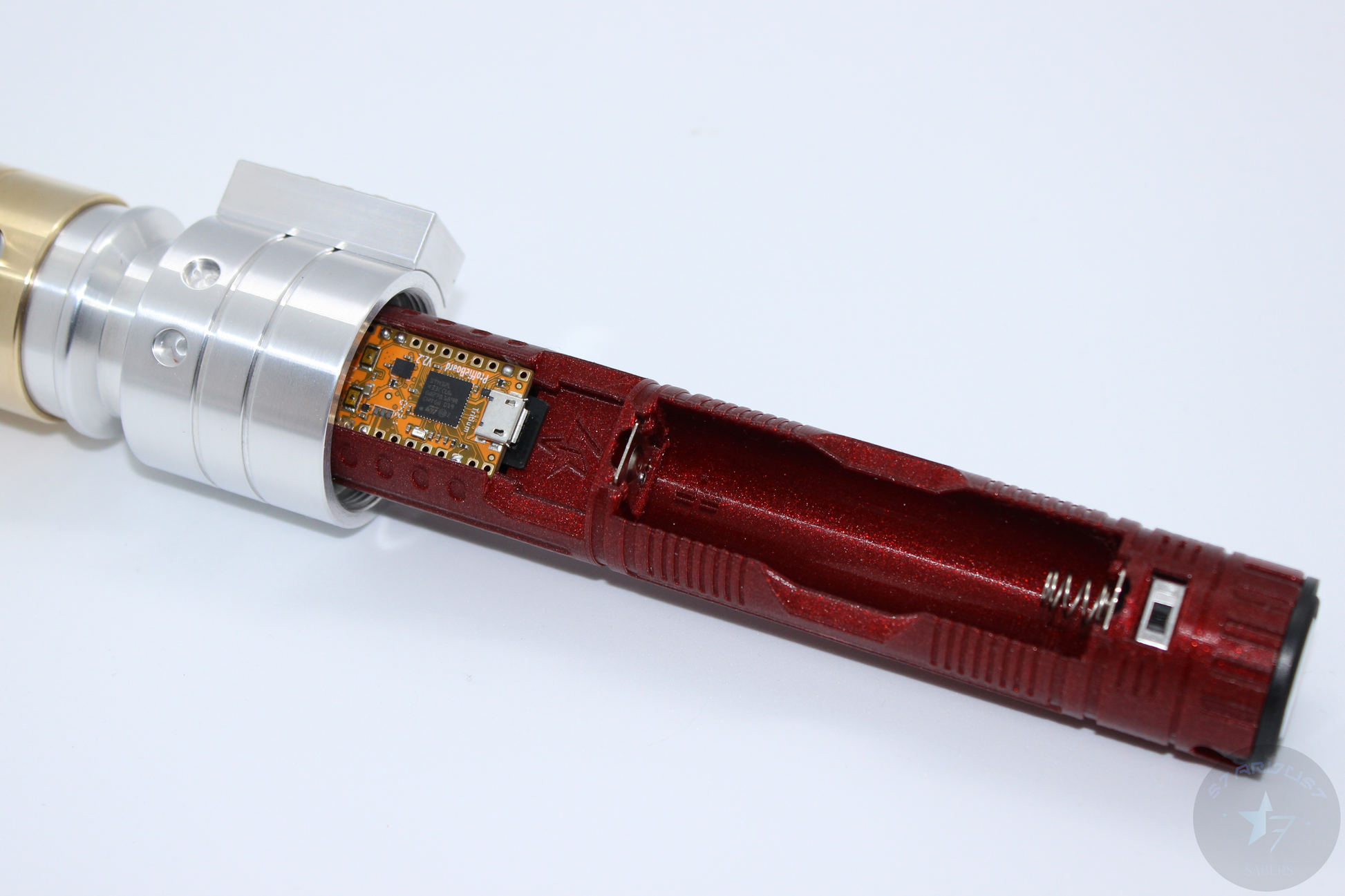

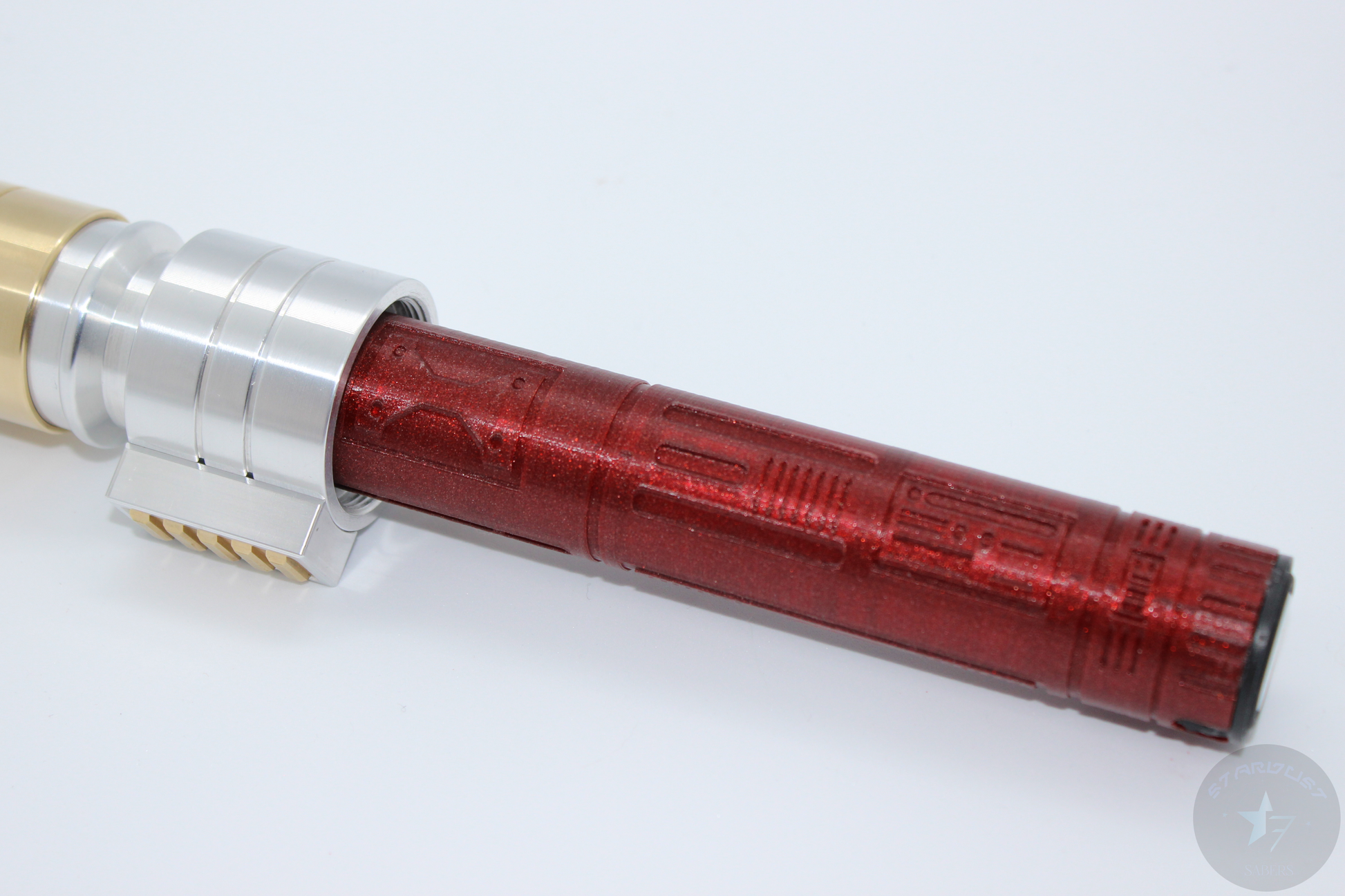

Here we have a static chassis for the KR Sabers ECO TFU2.

This chassis is only compatible with Neopixel builds. Please specify the brand of Neopixel connector you will be using for this build.

Chassis pieces are designed to be locked in place with the button head screws in the control box. The upper screw retains the switch + Neopixel housing. The lower screw retains the main chassis.

The speaker spacer is sandwiched and held in place between the grip and the pommel when they are screwed in together.

These are printed in high quality PLA with a variety of colour options.

Specs:

  • Soundboard: Proffieboard v2.2, Golden Harvest V3, Verso, or Crystal Focus X
  • Battery: Removable Protected Button Top 18650 Battery (Battery contacts will be provided)
  • Switch: 4mm x 4mm x 4.5mm tactile switch (included)
  • Speaker: 28mm Bass Speaker here
  • Power Management (Optional): High Amp Kill Switch here

Listing includes:

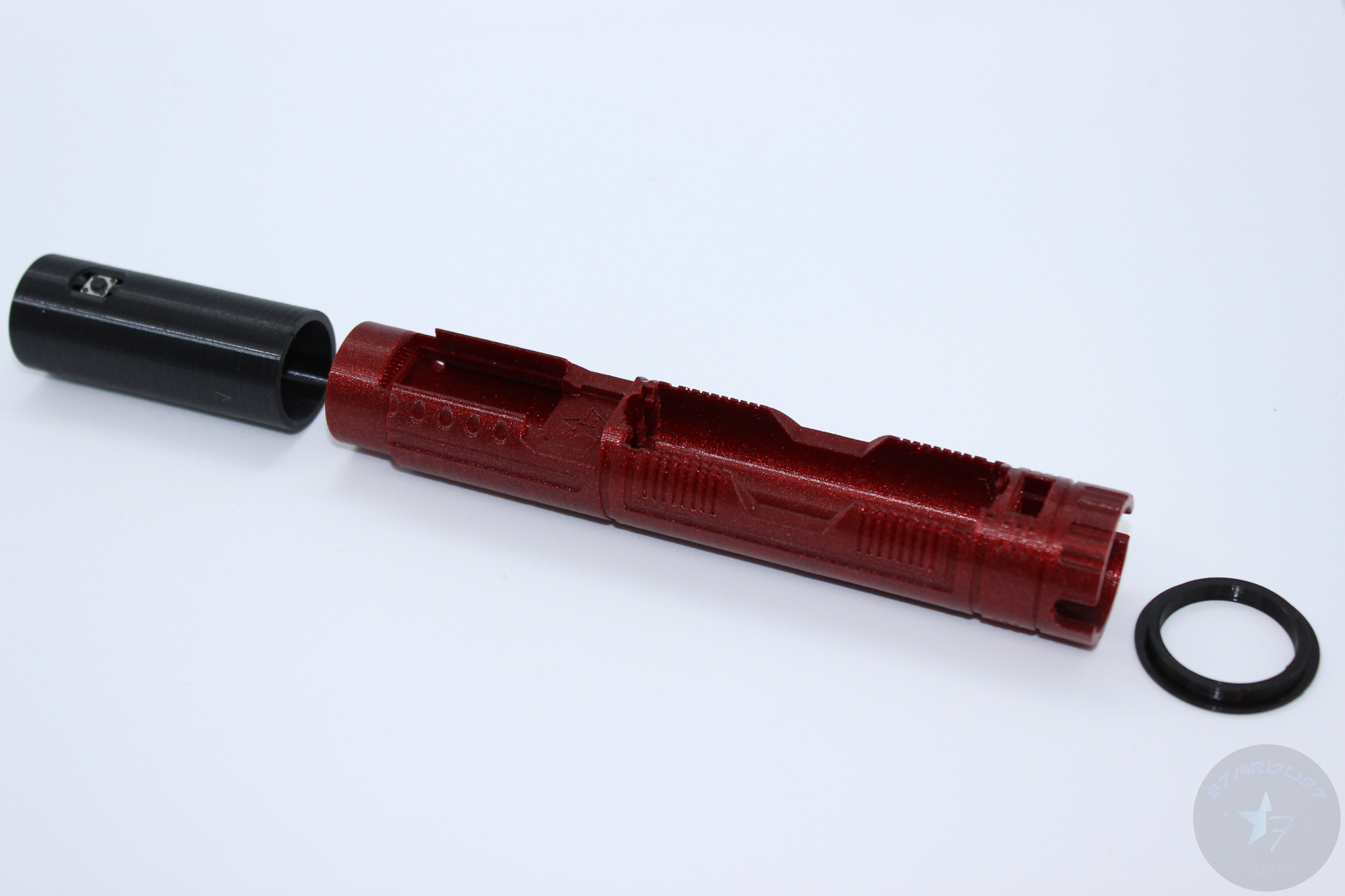

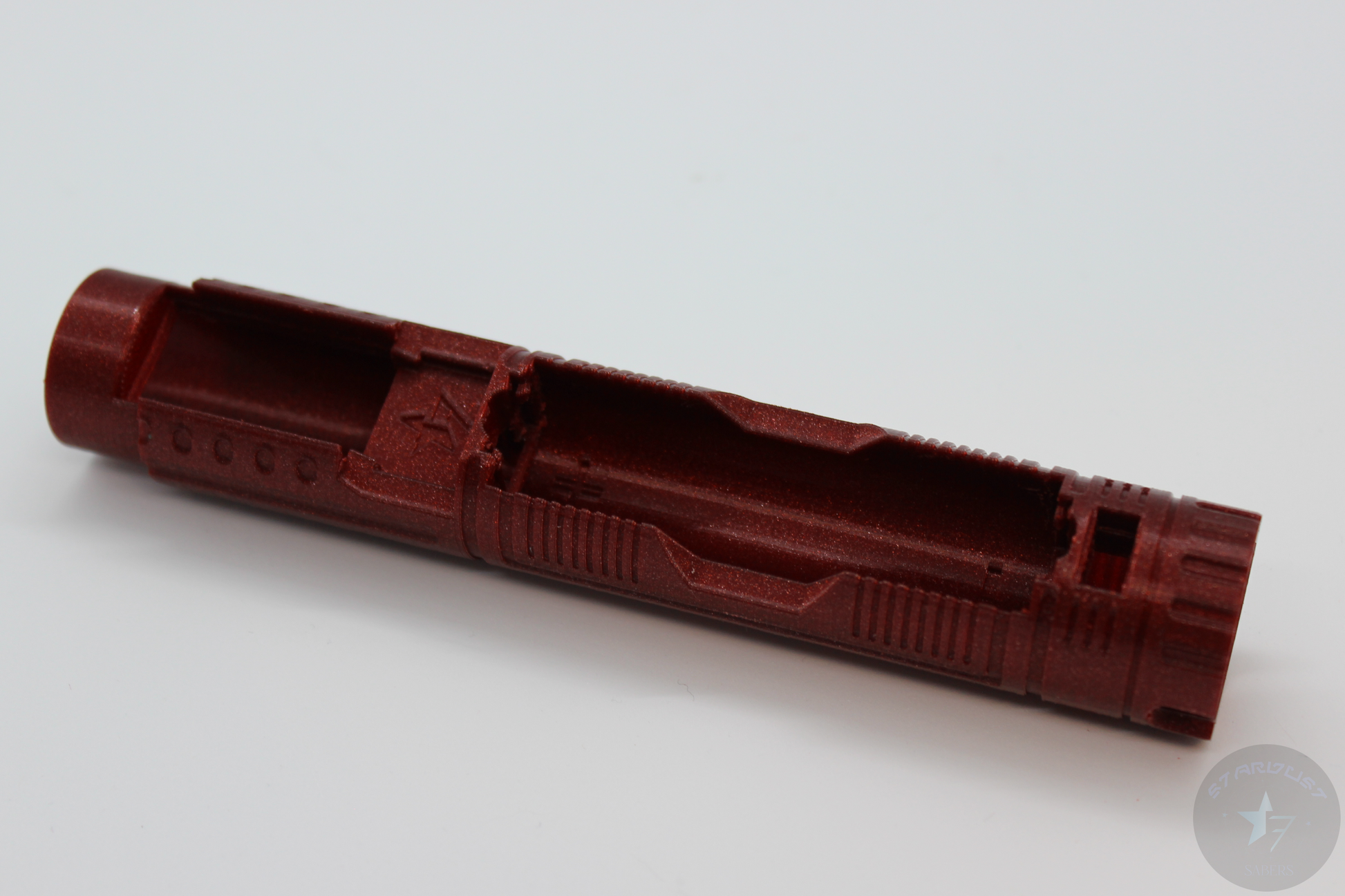

  • 1x printed ECO TFU2 main chassis
  • 1x printed switch + Neopixel housing
  • 1x printed speaker spacer
  • 1x pair of battery contacts
  • 1x 4mmx4mmx4.5mm tactile switch
  • Other electronics are not included
Other electronics not included

If at any point in the install the chassis is making it difficult for your install instead of enabling, please reach out to us immediately. We'll be more than happy to work through the issue with you.

Dimensions

Lengths

  • Main Chassis: 104mm
  • Switch + Neopixel Housing: 78.5mm
  • Speaker Spacer: 4.2mm

Diameters

  • Main Chassis: 28.9mm
  • Switch + Neopixel Housing: 25.5mm
  • Speaker Spacer: 33.6mm

Returns and Exchanges

As 3D printed chassis are custom made to order we will unfortunately not be able to offer a refund or exchange on these items.

But if you encounter issues with the chassis which you are dissatisfied with, please reach out to us immediately and we'll be more than happy to work with you to try to get it resolved.
