SDS ECO Pixel Emitter Connector (ECO PxE)

SDS ECO Pixel Emitter Connector (ECO PxE)

Regular price $12.00 CAD
Regular price $12.00 CAD Sale price $12.00 CAD
Sale Sold out
Shipping calculated at checkout.
View full details

Collapsible content

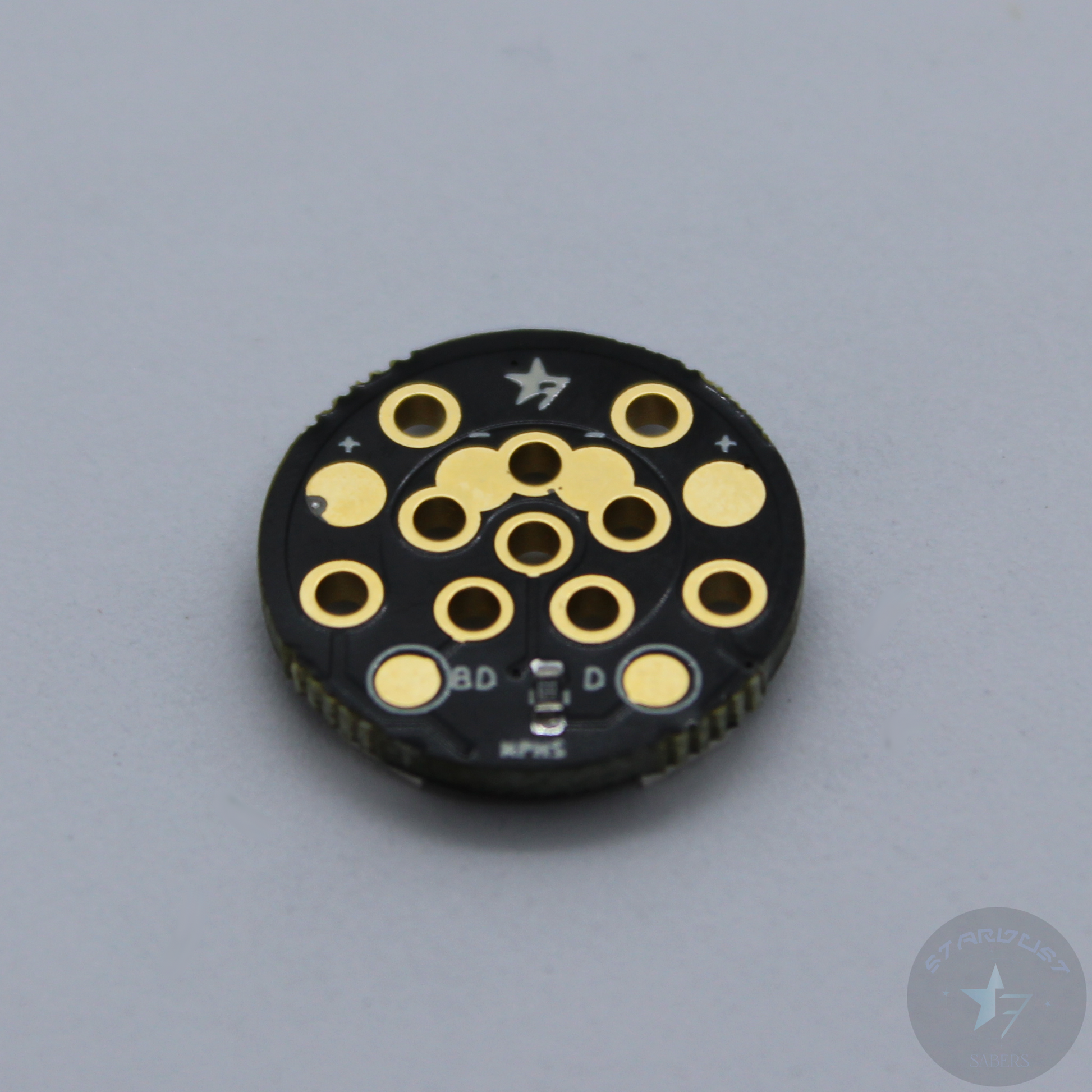

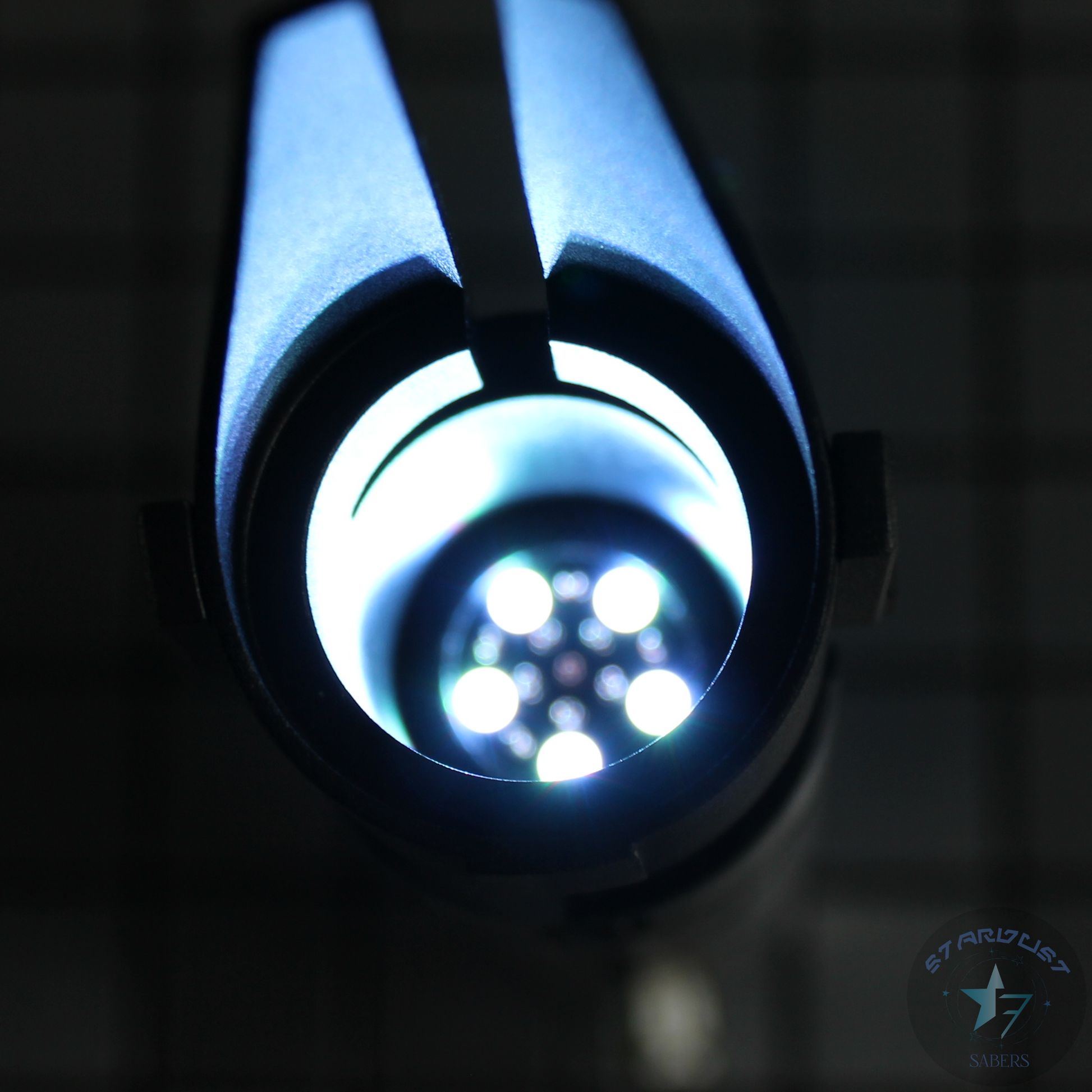

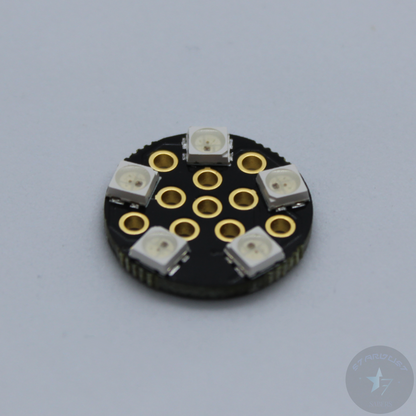

Here we have our ECO Pixel emitter PCB used to install the hilt side connection for a pixel saber. Great for lighting up the emitter of your saber when there isn't a pixel blade inserted.

You can either choose the long pin, short pin, and even just the PCB if you want to use your own pins. All options have the onboard LEDs and resistor soldered on already.

Please refer to the wiring guide for soldering up the PCB. Note that if the polarity of the PCB wiring or the battery is reversed the onboard LEDs may be damaged.


  • 4 pins for Positive and Negative connections, 1 pin for Data, and 1 pin for Blade Detection

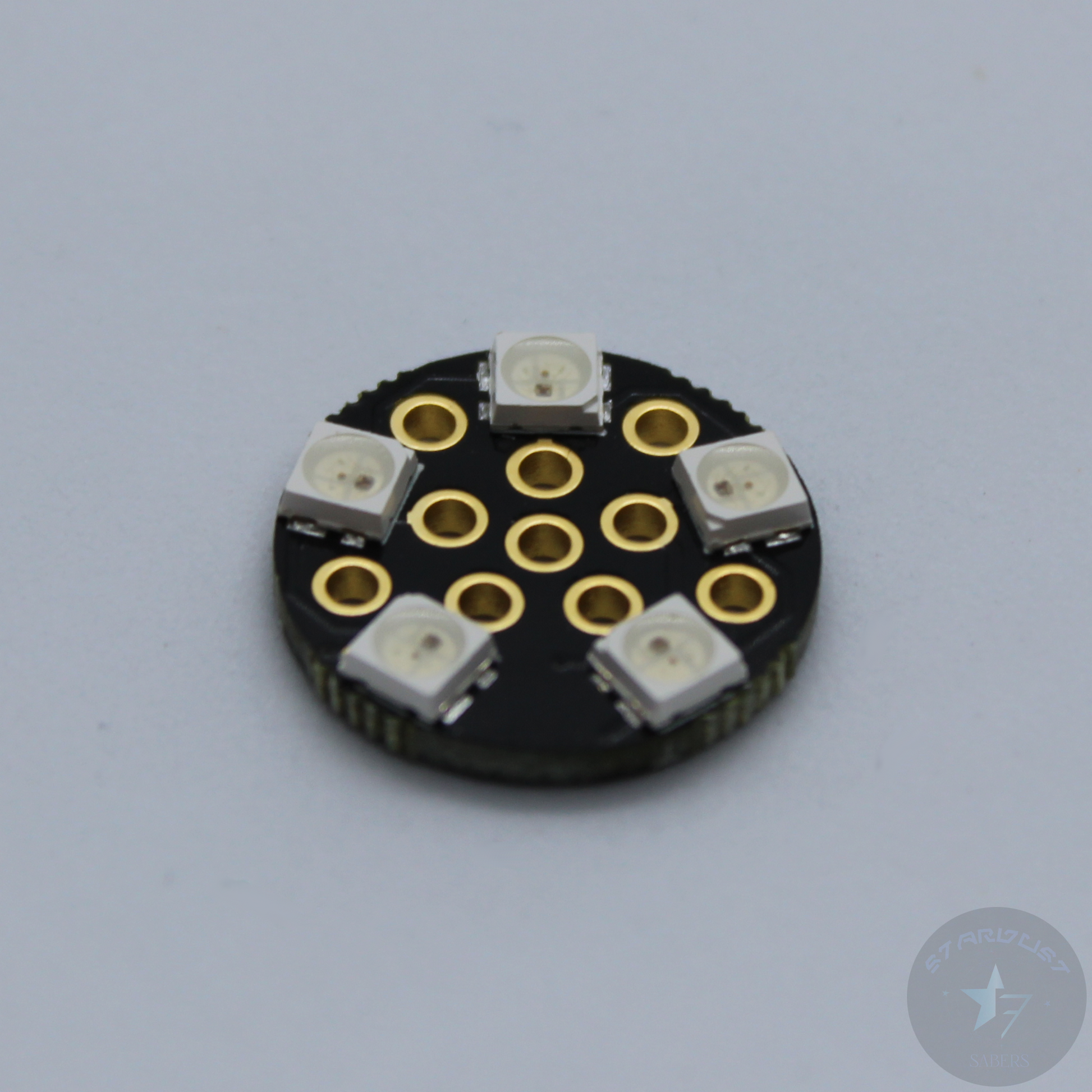

  • 5 onboard LEDs (SK6812 3535) placed in parallel with the main blade
  • data line is pre-resistored
  • each pin is rated for 5.60A 20% de-rated maximum current and 7A peak current

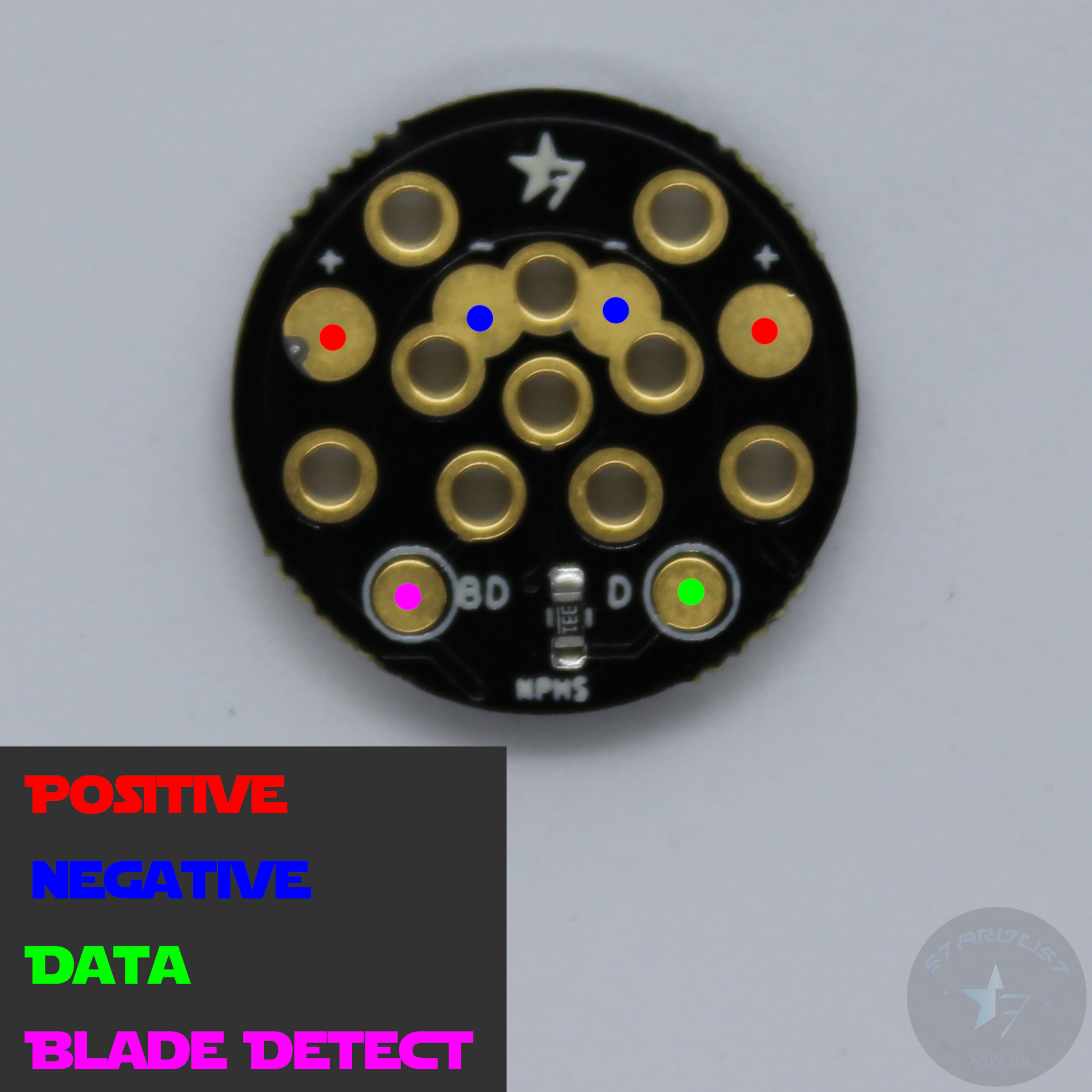

  • 2 solder pads for Positive, 3 solder pads for Negative, 1 solder pad for Data, and 1 solder pad for Blade Detect
If you need extra pins you can find them on sites such as Digi-key or Mouser

Pin product numbers:

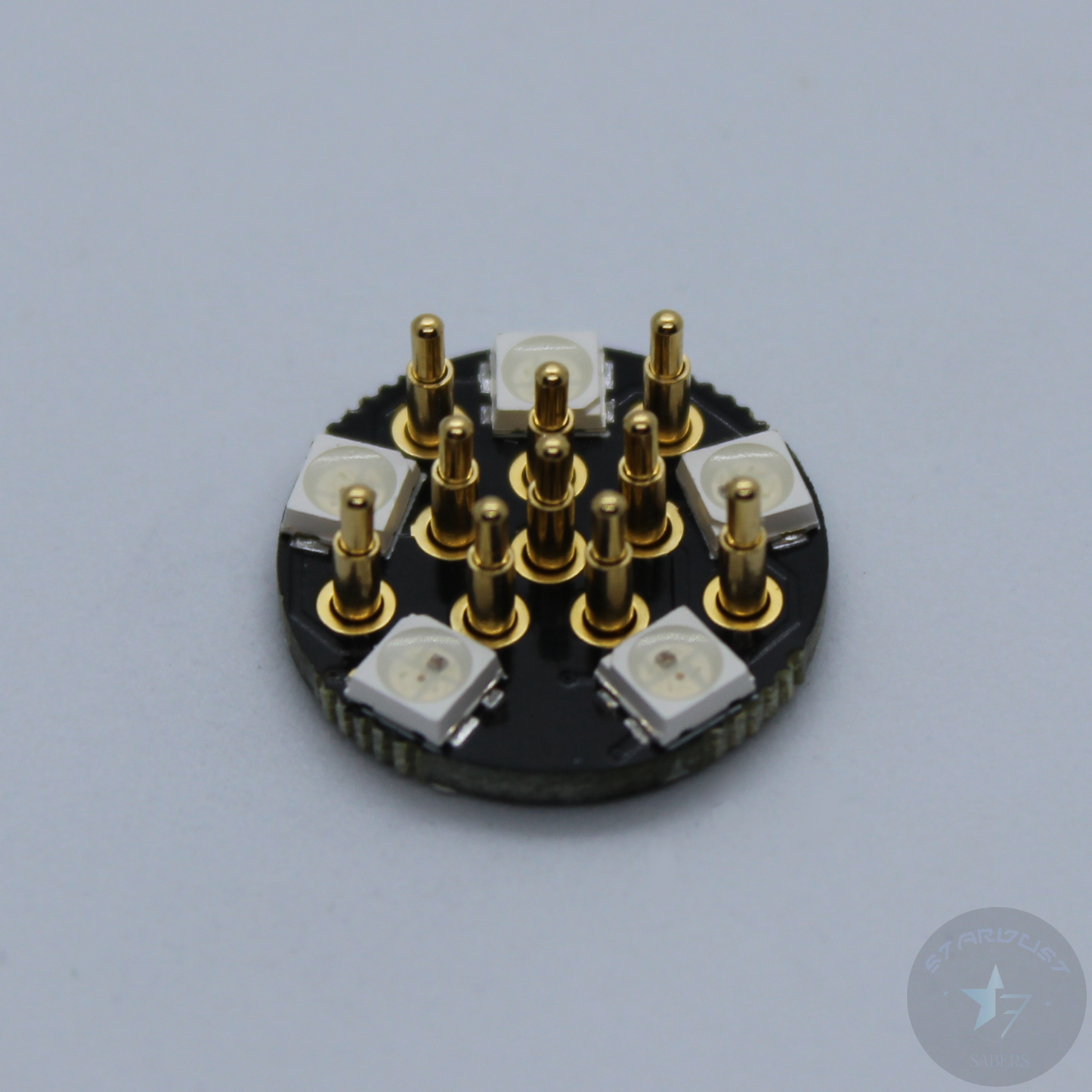

  • Long Pins (Mill-Max): 0928-0-15-20-77-14-11-0

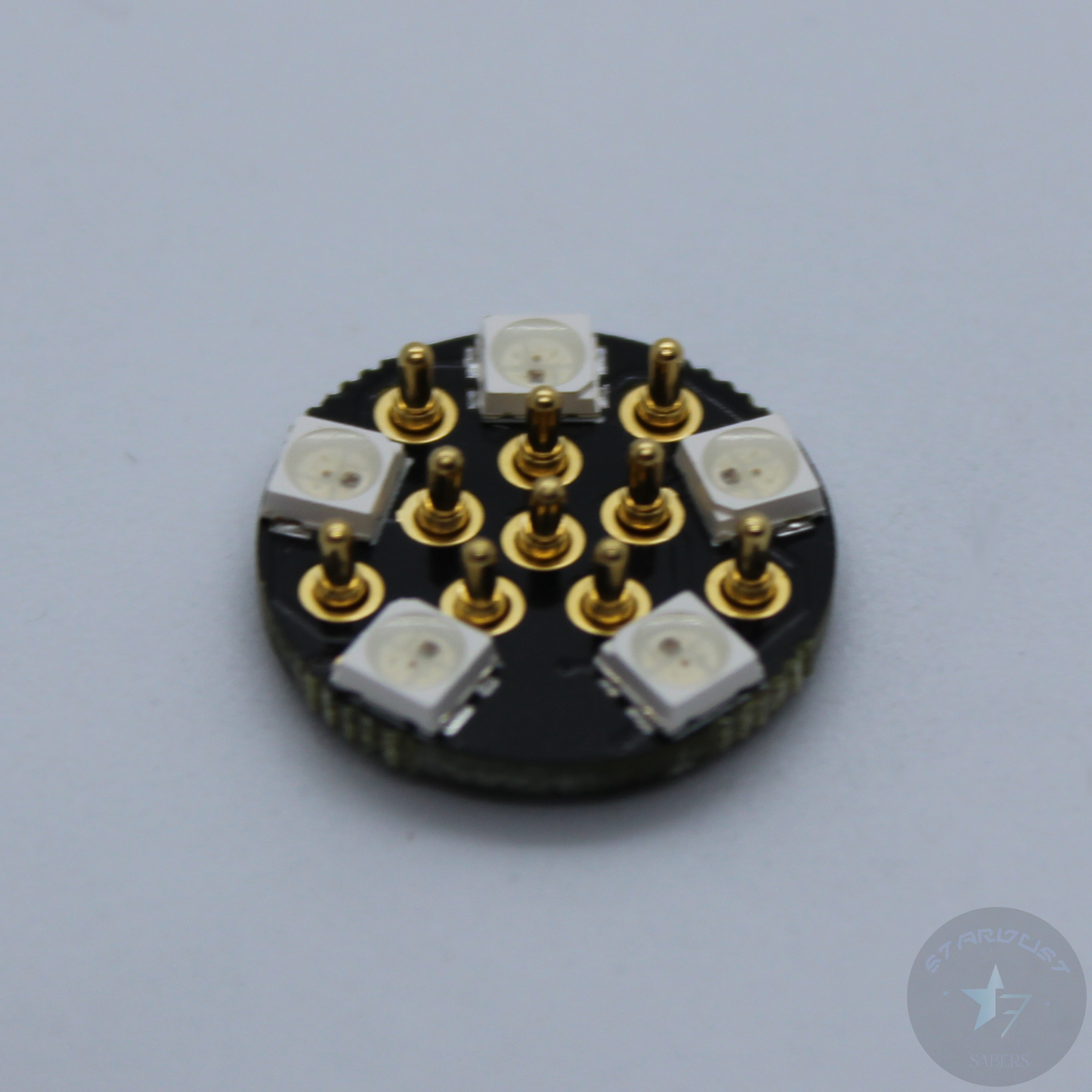

  • Short Pins (Mill-Max): 0900-2-15-20-75-14-11-0



  • PCB Diameter: 17.5mm
  • PCB Thickness: 1.6mm

Long Pins:

  • Pin Height: 7.5mm
  • Recommended Holder Depth:5.4mm

Short Pins:

  • Pin Height: 5.0mm
  • Recommended Holder Depth: 2.6mm
