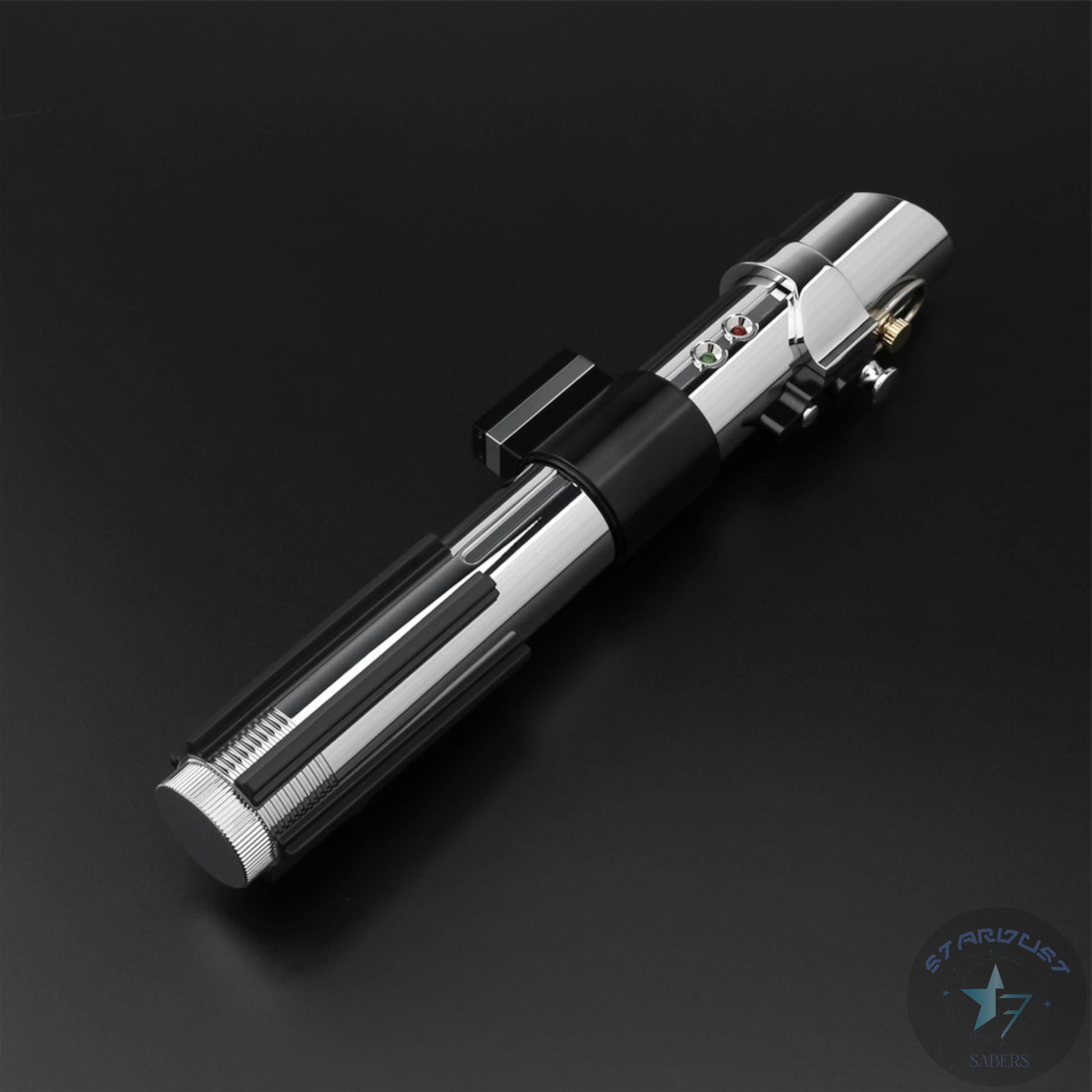

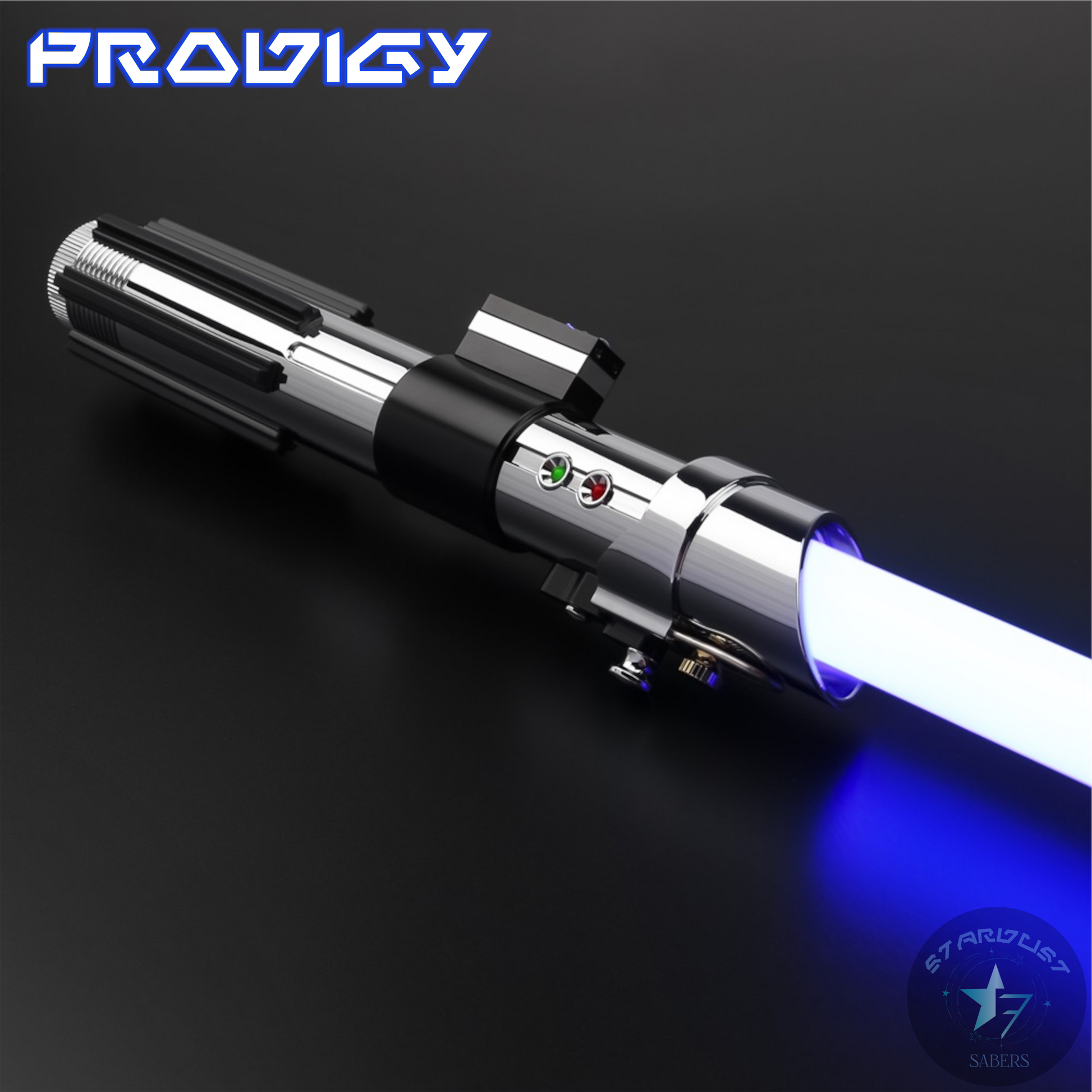

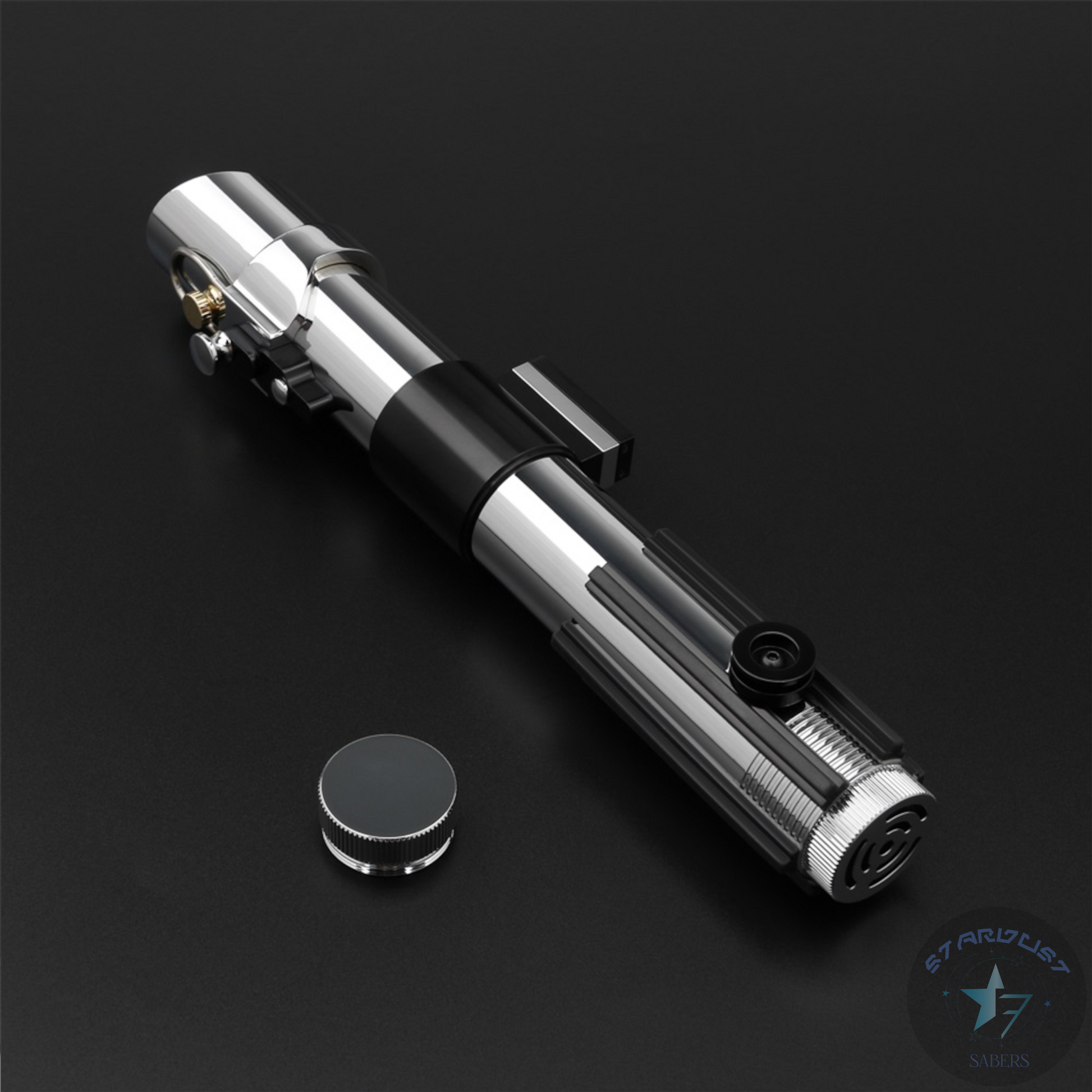

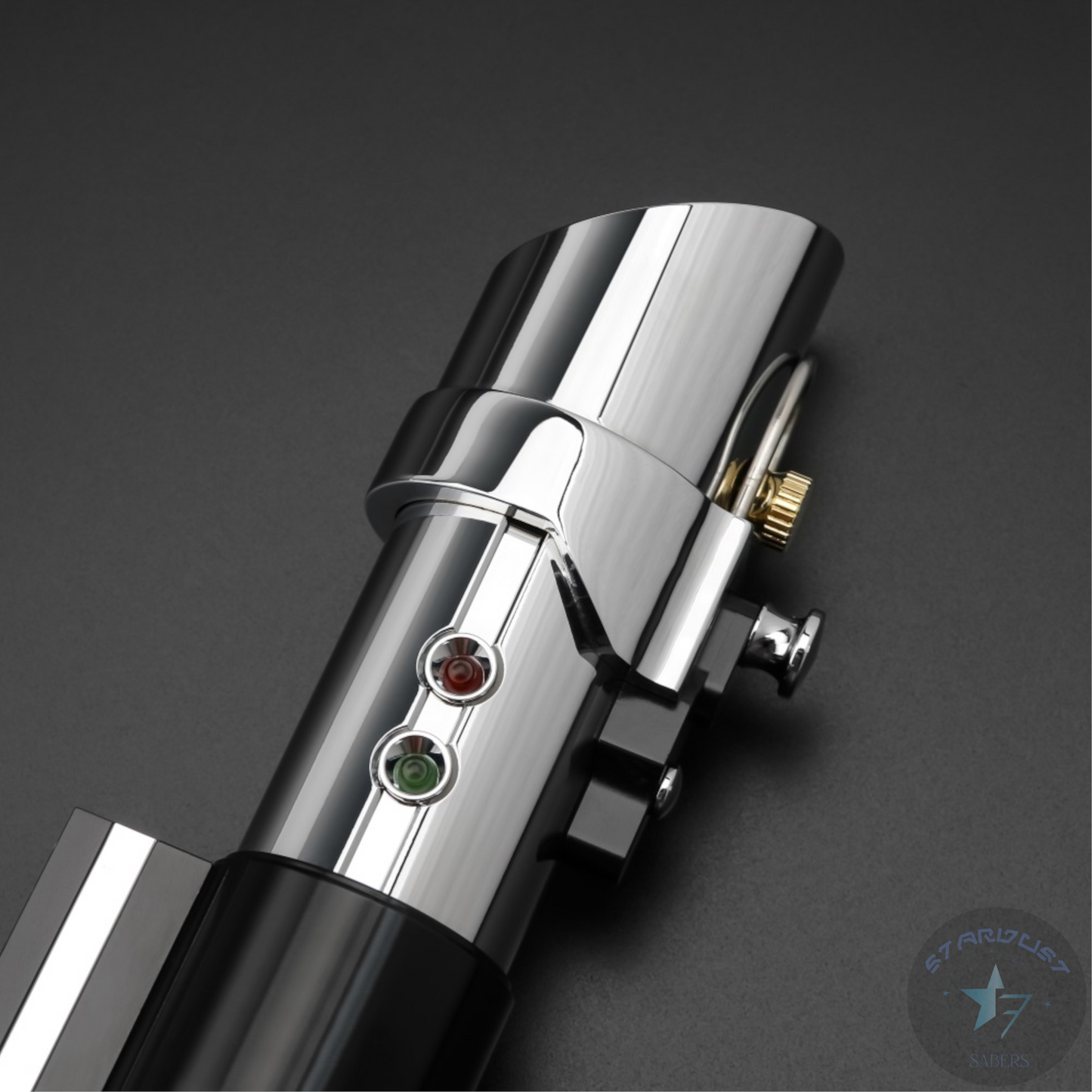

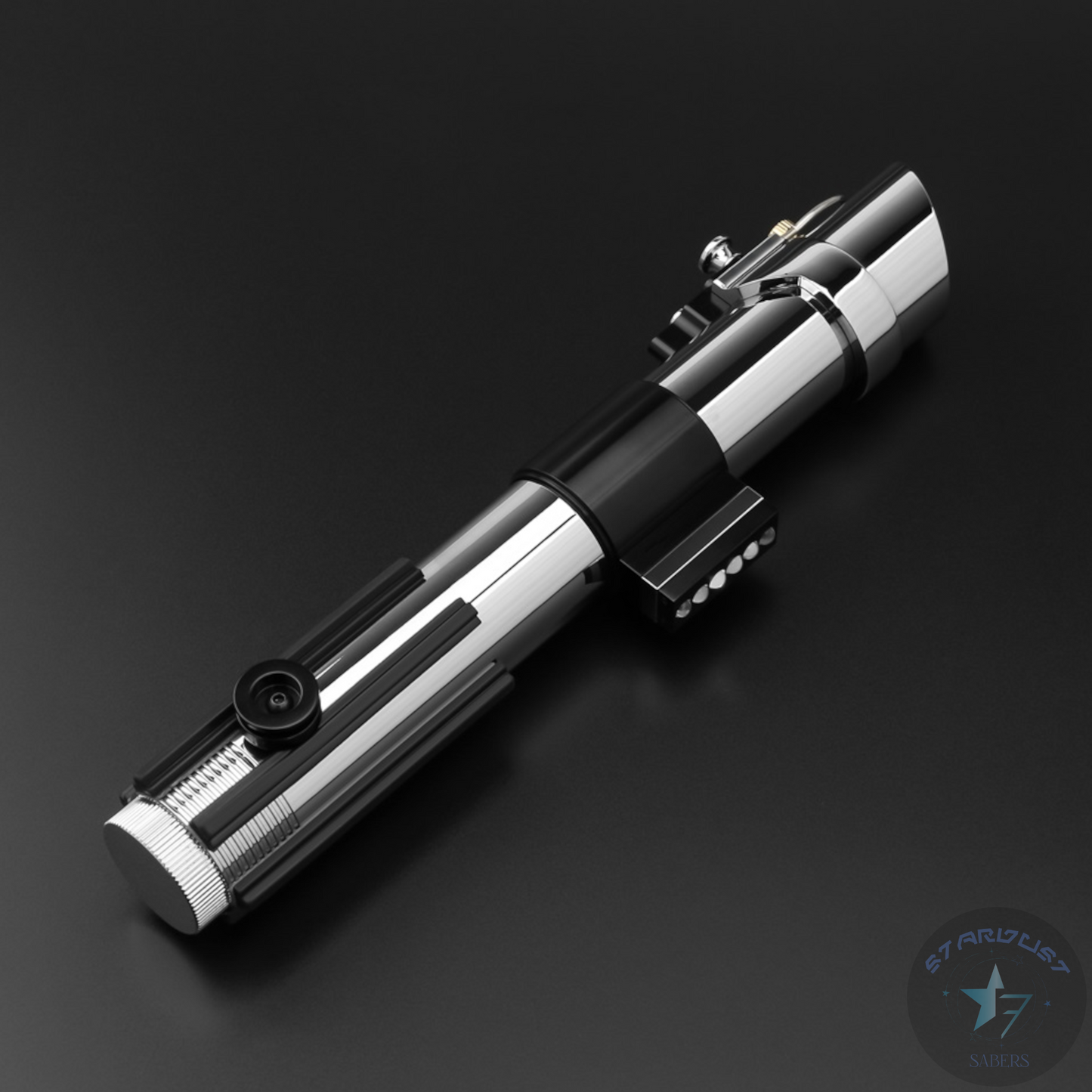

Prodigy (SN-Pixel)

Prodigy (SN-Pixel)

Regular price $432.50 CAD
Regular price $432.50 CAD Sale price $432.50 CAD
Sale Sold out
Shipping calculated at checkout.

Step into the shoes of the young Chosen One with Prodigy. Conquer every challenge and prove that you're the best amongst your peers and even better than your masters.

View full details

Collapsible content

Description

SN-Pixel V4 are excellent budget minded Pixel sabers with a full list of features. Allowing for complex and customizable blade animations. They are configurable via the SD card as well as the mobile app "ForcePark" available on the Google Play Store for Android and App Store for iOS.

You can customize sound fonts, blade styles, and pre-ons. With even more granular customization available from the app.

The blade is built with a Pixel strip inside and not recommended for dueling. These are great entry sabers if you want an introduction to Pixel technology at an affordable price.

Features:

  • smoothswing
  • gesture controls
  • 27 preloaded sound fonts (can be further customized via SD card)
  • SD card customization
  • connect via Bluetooth with mobile app ForcePark for even more customization options
  • RGB colour change
  • blade style customization (via SD card and mobile app)
  • pre-on effect customization (via SD card and mobile app)
  • tip drag
  • blaster block
  • flash on clash
  • lockup
  • force effects
  • customizable background music
  • rechargeable battery

Features Demo:

Specs:

  • Hilt Material:Aircraft grade 6061 aluminum alloy
  • Blade Material:Polycarbonate with rigid Pixel strip and EPE foam
  • Blade:1" outer diameter polycarbonate blade with 3mm wall thickness. Comes in lengths of 32" or 36"
  • Battery: Rechargeable 3200mAh 18650 battery

Listing includes:

  • 1x hilt with SN-Pixel V4 electronics core
  • 1x thick wall Eco Pixel blade. Comes in lengths of 32" or 36"
  • 1x USB-C charging cable or 1x external lithium-ion charger
  • 1x 5V1A charging block for USB if applicable
  • blade retention hex wrenches
  • 1x instruction card
  • 1x micro SD card reader


This ECO saber is manufactured by TXQ Sabers.

All ECO sabers are hand inspected to ensure it has correct and functional electronics. Due to the manufacturing process and multiple stages of shipping, there may be small blemishes on the sabers.

Unfortunately ECO sabers are only eligible to be shipped domestically within Canada or to the USA. If you reside in the rest of the world and still want to purchase, please reach out to stardustsabers@gmail.com and we can see about arranging shipping options.

Dimensions

SN-Pixel Instructions

You can find instructions below at SN-Pixel V4 Instructions

Before use, charge the saber fully with the provided cable and charging block. Make sure to not supply more than 5V and 1A output to the saber or charge the saber while it's on. If those numbers mean gibberish then don't worry, that's what the charging block is for!

Charge for about 3 hours for but make sure not to leave it completely unattended.

To insert the blade, use the provided hex key to loosen the emitter blade retention screws. Insert the blade and tighten the screws just enough to hold the blade in place with friction.

Be careful not to over-tighten, as this will dent and damage the blade. Light marks on the blade from the set screw is expected.

Features

SN-Pixel V4 comes with a large library of sound fonts (27) already on the SD card but you can add even more just by dragging and dropping it on the SD card. There are at least 10 blade styles and 12 preon effects that can be configured with even more available to be customized via the mobile app!


Check out the features!



Sound Fonts


Here are the 27 default sound fonts included on the SD card. You may add, edit, or delete sound fonts but make sure you keep a backup of the files on your local hard drive.

 Sound Font Name Sound Font Artist
Ani's Padawan JuanSith
Angry Ani JuanSith
Blue Lady Master JuanSith
Master Depa JuanSith
D-Maul JayDalorian
Dookula JuanSith
Dark Sith Red Mountain Sabers
Emperor unknown
Fallen Order Cal JuanSith
Frolic Frog JuanSith
Graflex IX JuanSith
Grumpy Ben JuanSith
Inquisitor JuanSith
L-Skywalker JayDalorian
Mace Windy JuanSith
Mando Saber JuanSith
Master Mundi JuanSith
Obi Ep III JuanSith
Quin Vos JuanSith
Revanchist - Reborn JuanSith
Revanchist - The Butcher JuanSith
Temple Guard JuanSith
TFU 2 Secret Apprentice JuanSith
The Lost Sister JuanSith
Tulak: The Greatest Swordsman JuanSith
Rogue Vader JuanSith

Adding Background Music

Some but not all of the default sound fonts have background tracks already.

If you wish to add tracks to a sound font make sure that they are:

  • saved as .wav files
  • bitrate of 44100 Hz
  • saved without any metadata

Tracks are stored in each individual sound font folder with the following naming format track#.wav or track (#).wav. If you have multiple track files, make sure they are named in numeric sequential order. When playing background music the tracks would be selected at random.

Saber Operation (1 Button)

Hibernate
Wake up saber Hold button
Switch between blade lengths for 32" and 36" blades Quickly tap the button 3 times



Standby
Ignite saber Tap button

or

Twist the saber
Adjust volume Hold the button for 1s or 1 LED button blink
Switch preon effect

Hold the button for 2s or 2 LED button blinks

Switch blade style Hold the button for 3s or 3 LED button blinks
Switch sound fonts Hold the button for 4s or 4 LED button blinks

or

With the saber pointed up, hold the button and twist the saber
Switch background music With the saber pointed down, hold the button and twist the saber
Enter hibernate mode Hold the button for 5s or 5 LED button blinks
Automatically enters hibernate mode after idling for 10 minutes



Ignited
Blaster block Tap the button
Flash on Clash Hard clash on the saber
Lockup Hold the button for 1s or 1 LED button blink. Tap the button again to disengage lockup
Colour change Hold the button for 2s or 2 LED button blinks
With the saber pointed down, hold the button and twist the saber

The saber will cycle through the colours, tap the button again to select it
Enable or Disable Flash on Clash Hold the button for 3s or 3 LED button blinks
Retract saber Hold the button for 4s or 4 LED button blinks
Twist the saber
Force effect With the saber pointed up, hold the button and twist the saber
Drag effect Hold the button and clash the blade
Melt effect Hold the button and thrust the saber horizontally forward

Saber Operation (2 Buttons)

Hibernate
Wake up saber Hold the Main button
Switch between blade lengths for 32" and 36" blades Quickly tap the Main button 6 times



Standby
Ignite saber Tap button

or

Twist the saber
Adjust volume Hold the Main and Aux button at the same time, release after the loud beep prompt to enter volume change mode.
Click Main button to increase the volume and click Aux button to decrease the volume.
Press and hold Main and Aux button to exit
Switch preon effect

Hold the Main button for 1s

Switch blade style Hold the Aux button for 1s
Switch sound fonts Tap the Aux button

or

With the saber pointed up, hold the Aux button and twist the saber
Switch background music With the saber pointed down, hold the Aux button and twist the saber
Enter hibernate mode Tap the Aux button 3 times

or

Automatically enters hibernate mode after idling for 10 minutes



Ignited
Blaster block Tap the Aux button
Flash on Clash Hard clash on the saber
Lockup Hold the Aux button for 1s. Tap either button again to disengage lockup
Colour change With the saber pointed down, hold the Aux button and twist the saber
Retract saber Tap the Main button

or

Twist the saber
Force effect With the saber pointed up, hold the Aux button and twist the saber
Drag effect Hold the Main button and clash the blade. Tap either button again to disengage drag effect.
Melt effect Thrust the saber horizontally forward
Enable or Disable Flash on Clash Hold the Main and Aux button at the same time then release

*Revised with feedback provided by u/B0BA_F33TT of the r/Lightsaber subreddit

Saber Customization

SD Card Customization

You can add sound fonts on the SD card with numerically ordered folder names. SN-Pixel V4 can take Proffie formatted sound fonts.

You can also customize blade styles in the "config.ini" file in the "set" directory.

Mobile App

In addition to the SD card, you can more easily customize the saber via Bluetooth using a mobile app. The app "ForcePark" is available on Android through the Google Play Store and iOS on the App Store.

It currently has the below icon:



Note: The iOS version of the app is currently experiencing connectivity issues. The engineering team from TXQ is looking into resolving this in a future firmware update.

Firmware

Your saber's firmware can be updated via the mobile app. But if you would like to manually update it you can follow the steps below as well as download the appropriate firmware update file.

To update the firmware of your soundboard:

  1. Remove the core from the saber
  2. Remove the battery from the core
  3. Remove the SD card from core
  4. Insert the SD card into your PC with a micro SD card reader
  5. Download the appropriate firmware binary
  6. Rename the firmware binary to ota.snv4 and copy it to the root of the SD card
  7. Re-insert the SD card back into the soundboard
  8. Re-insert the battery back into the core
  9. Wait for the saber to finish updating
Firmware Updates

Nov 2023

More Information

Battery Removal and Insertion

Some sabers may use an external battery charger which require removing the battery to recharge it. You may also want to remove the battery to reseat it in your ECO Saber or charge it externally. Below is a demo showing how to remove the battery from the tight battery holder and re-inserting it back in the core.

Saber with multiple blade retention screws

What if my saber has multiple blade retention screws? Should I tighten them all in?

Good question, here are some diagrams to illustrate which ones you should tighten. The blade retention screws are marked in blue and the contact points acting on the blade are marked in red.


In the middle diagram with all retention screws tightened, the red areas marked in red are the surface area contact points of the blade. Note how it's only really making contact with the 4 retention screws and the opposite ones are counteracting against each other.

Whereas in the 3rd diagram on the right, where only retention screws on the same side are tightened, the blade has much more surface area contact with the inside wall of the hilt itself.

It's preferred to tighten retention screws on the same side, or 90 degrees from each other so the blade has more surface contact which results in it being held in the saber tighter.

Warranty

All ECO RGB sabers come with a 1-year limited warranty on the electronics. The warranty period begins on the date of delivery.

Warranty only covers normal operation of the saber as instructed. Tampering with the electronics, modifications to the hilt, inserting the battery with the incorrect polarity, and incorrectly charging the saber will void the warranty.

If there are any issues with the saber please reach out to us and we'll do our best to assist.
